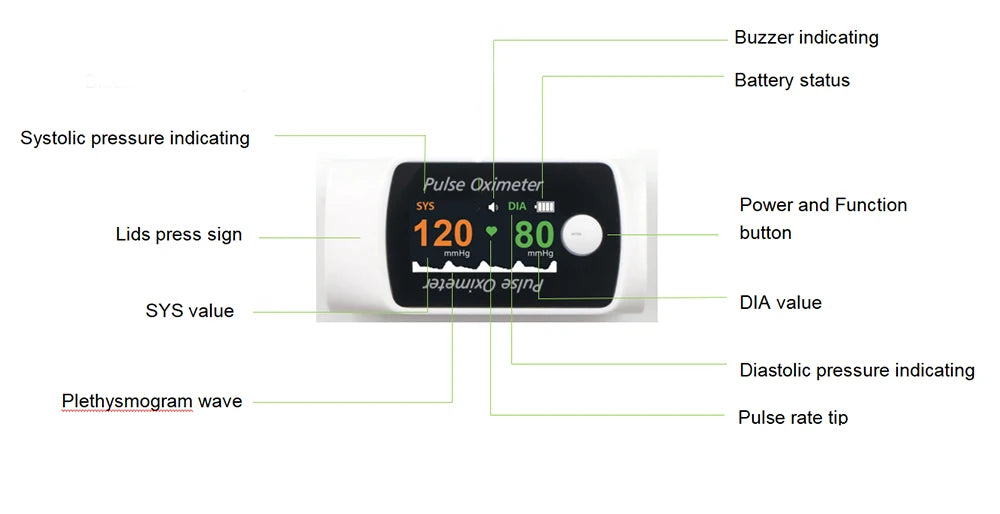

Function Description

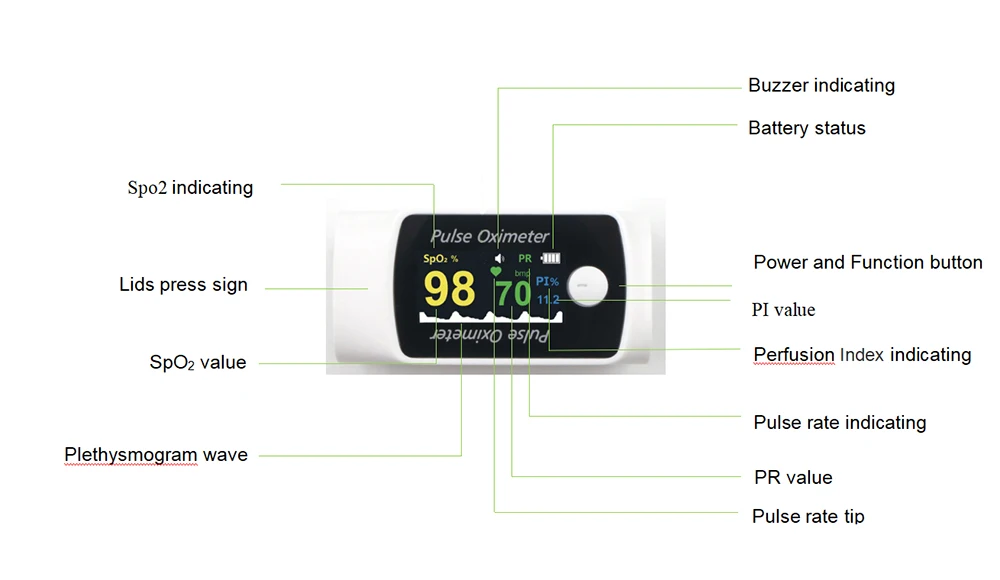

SpO2 measurement:

Short press power and function switch button for 1 second to power on, enter the SpO2 measurement mode directly.

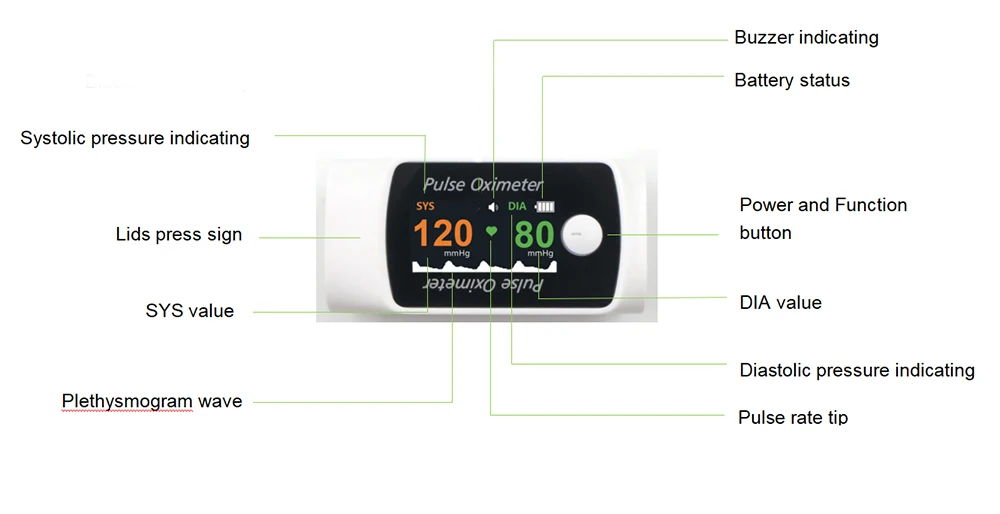

CNIBP measurement:

When in SpO2 measurement mode, short press the “POWER/FUNCTION” button for 1second, the device enter CNIBP mode.

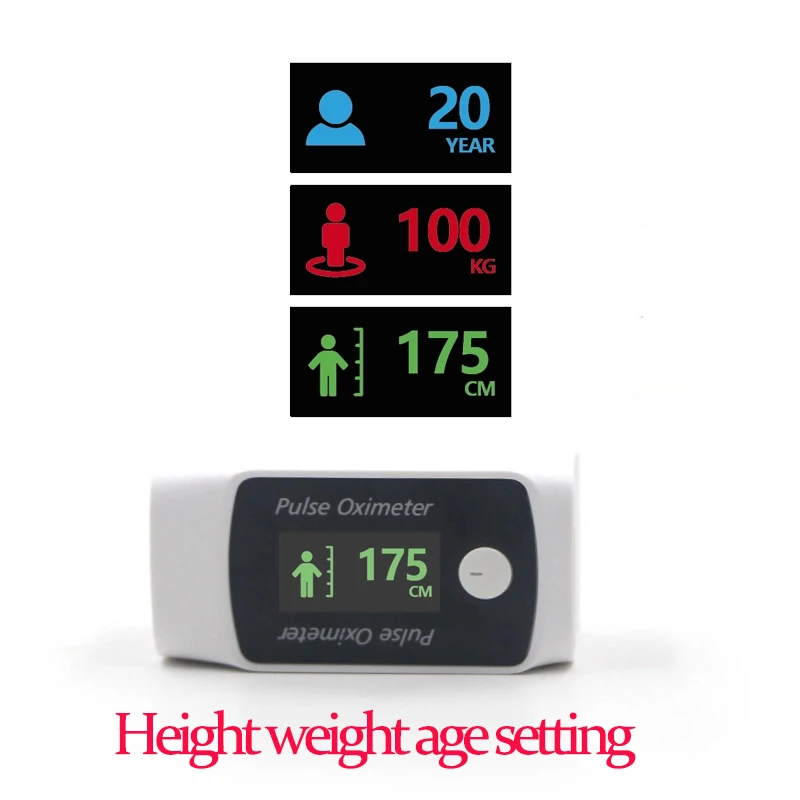

CNIBP calibration:

When in CNIBP mode long press the “POWER/FUNCTION” for 2seconds, enter parameter setting interface. Next short press, you can set specific parameters.

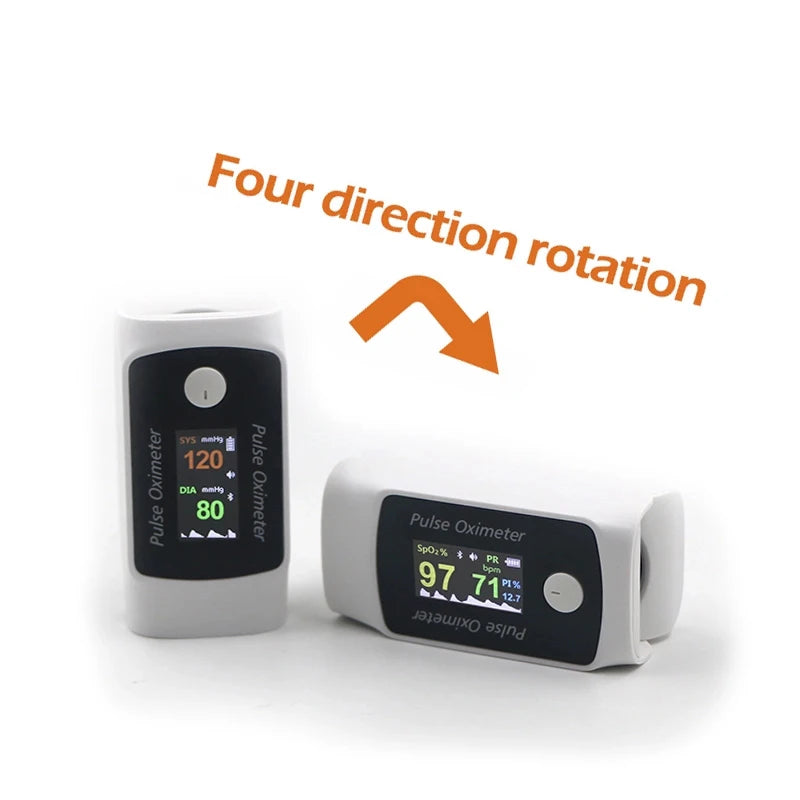

Gravitational induction:

Rotate the device and the measuring display rotates.

Auto shut off:

When the received signal is inadequacy, “- - -” will be displayed on the screen.The product will automatically be powered off when no signal after 10 seconds.

Technical Specifications

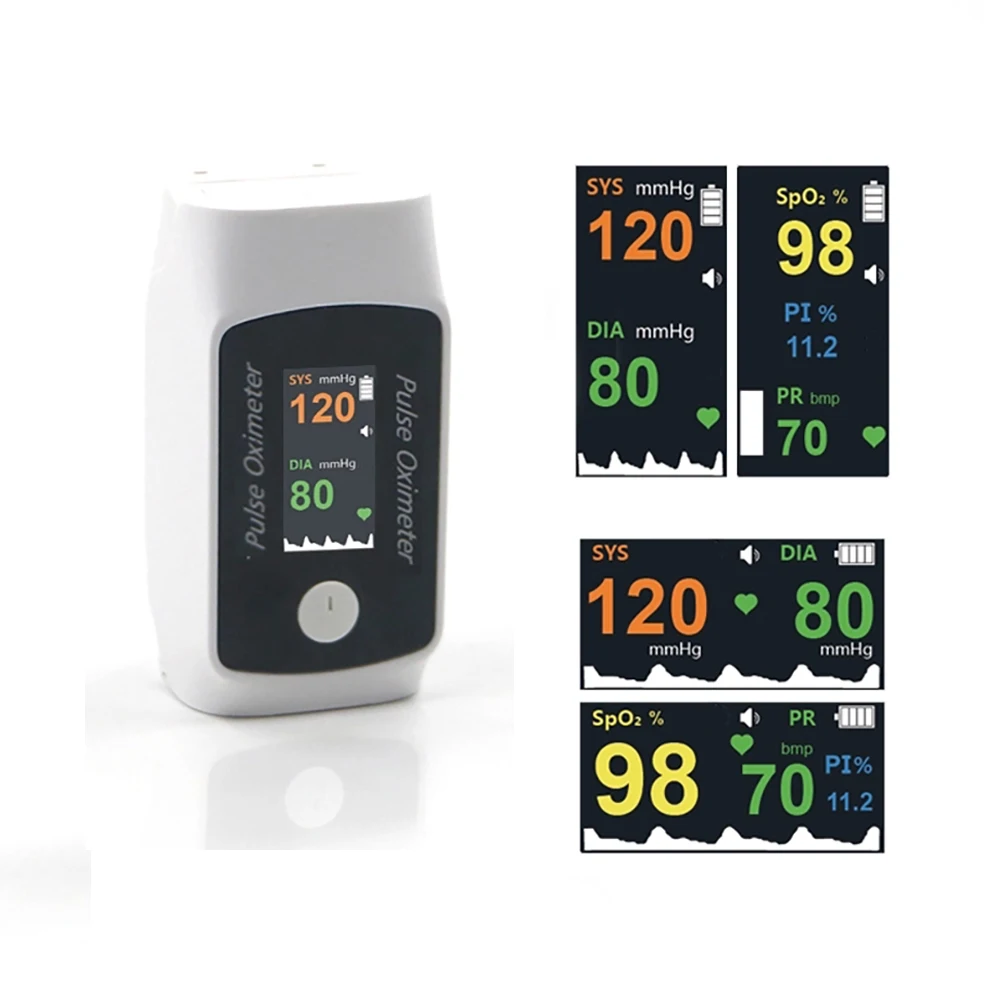

1.Display mode: TFT
Technical Specifications1.Display mode: TFT
2.SpO2:
Measurement range: 35~100%
Accuracy: ±2%（80%~100%）; ±3%（70%~79%）
3.Pulse Rate:
Measurement range: 25~250bpm
Accuracy: ±2bpm
4.CNIBP:
Systolic pressure
Measurement range: 80~200mmHg
Diastolic pressure
Measurement range: 40~120mmHg
5.Electrical specifications:
Working voltage: D.C.2.2 V~D.C.3.4V
Battery Type: Two 1.5V AAA alkaline batteries
Power consumption: smaller than 50mA
6.Product specifications:
Size: 65(H) *32(W) *30(D) mm
Weight: about 45g (include two AAA batteries)
7.Environment requirements:

NOTE：

Temperature:
Operation: +5~+40℃
Transport and storage: -10~+50℃
Humidity:
Operation: 15%~80%（noncondensing）
Transport and storage: 10%~90%（noncondensing）
Atmospheric pressure:
Operation: 860hPa~1060hPa
Transport and storage: 700hPa~1060hPa
Size: 65(H) *32(W) *30(D) mm
